Machine lines

FIM 600 - FIM 950FIM 600 - FIM 950FIM 600 - FIM 950FIM 600 - FIM 950

FIM 600 - FIM 950

Flake/scale ice makers

FIM 600

600 Kg/24 h


FIM 950

950 Kg/24 h



RELIABLE

  • Construction in stainless steel and specific materials approved for contact with food stuff
  • Gas R452A
  • (A) Air condensing
  • Compact and Split* versions
  • Special voltages, on request
  • Machines comply with hygiene and safety regulations
  • Standard working conditions:
    • incoming water temperature 15°C
    • environment air temperature 20°C
  • Fixed vertical evaporator cylinder with high thermal exchange
  • ON-OFF controls on board the machine

* KVP valve not included (optional)



DEPLIANT »

DIMENSIONS - TECHNICAL SPECIFICATIONS »

Optional »

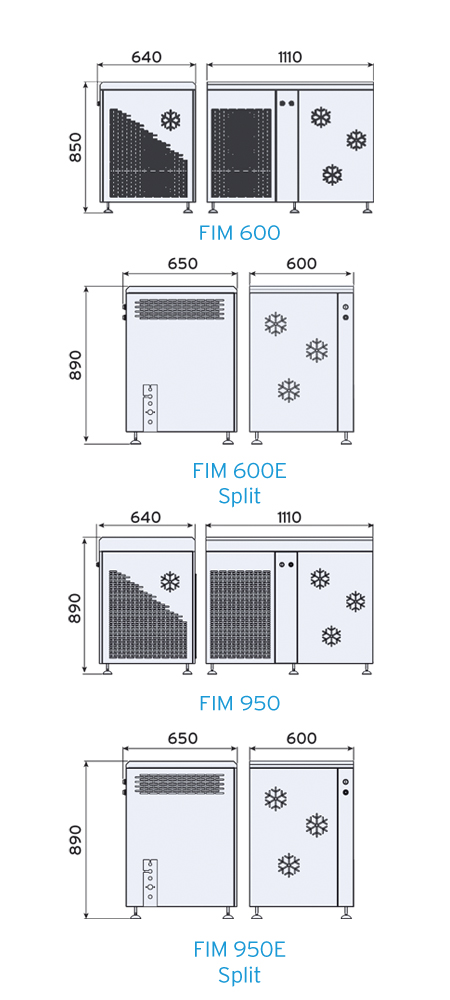

DIMENSIONS - TECHNICAL SPECIFICATIONS

 FIM 600FIM 600e splitFIM 950FIM 950E Split
Productivity600
Kg/24 h
600
Kg/24 h
950
Kg/24 h
950
Kg/24 h
Ice
temperature
-5°C / -7°C
Flake/scale
thickness **
0,9/1,2 mm
Refrigerating
capacity
required
-

2700 W

-

4900 W

Electrical
Power
2,5
kW
0,58
kW
4,30
kW

0,58

kW

Net weight205
Kg
115
Kg
231
Kg
135
Kg
Volt RatedV400/3/50HzV230/1/50HzV400/3/50HzV230/1/50Hz






Naked version to be confirmed





** The thickness can be increased assembling a salt feeding “brine” pump (optional)



High recommended to install the photocell (electric barrier for ice level detection ) for a correct and safety running of flake ice makers (FIM series). Please see the catalog















  • Accessories flake/scale ice
    Accessories flake/scale ice »
  • Ice storage bins
    Ice storage bins »

All the information shown in this document (descriptions, technical specifications, pictures, prices etc.) are indicative only, not binding and can be changed without notice. Despite it, this document remains valid.
