Machine lines

FIM 600E-C02 - FIM 950E-C02 - FIM 1500E-C02

FLAKE/SCALE ICE MAKERS FOR SPLIT-CO2

FIM 600E-C02

800 Kg/24 h

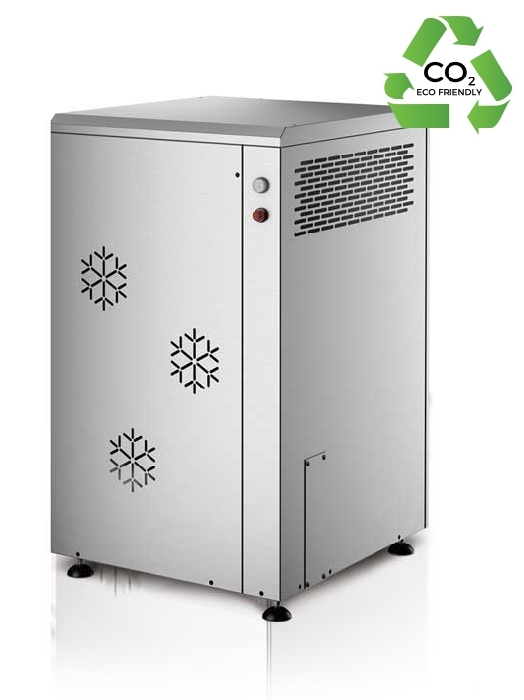

FIM 950E-C02

1200 Kg/24 h



FIM 1500E-C02

1800 Kg/24 h

RELIABLE

  • Construction in stainless steel and specific materials approved for contact with food stuff ***

  • Split configurations*

  • CO2 (R744) cooling gas

  • Special voltages, on request

  • Machines comply with hygiene and safety regulations

  • Standard working conditions: incoming water temperature 15°C

  • Fixed vertical evaporator cylinder with high thermal exchange

  • ON-OFF controls on board the machine

  • Te -23°C

  • PS max 40 bar

High recommended to install the photocell (electric barrier for ice level detection ) for a correct and safety running of  flake ice makers (FIM series).



*      KVP valve not included (optional)

**    The thickness can be increased assembling a salt feeding “brine” pump (optional)

***  Naked version to be confirmed



DEPLIANT »

DIMENSIONS - TECHNICAL SPECIFICATIONS »





Optional »



DIMENSIONS - TECHNICAL SPECIFICATIONS



FIM 600E- C02 Split

*

FIM 950E-C02 SPLIT*FIM 1500E-C02 SPLIT*

Productivity

800 Kg/24h

1.200

 Kg/24 h

1.800

Kg/24 h

Ice temperature

-5°C / -12°C-5°C / -12°C-5°C / -12°C

Flake/scale thickness**

1,5/1,8 mm1,5/1,8 mm1,5/1,8 mm

Refrigerating capacity required

3200 W5900 W

8700 W

Electrical Power

0,58 kW0,58 kW0,58 kW

Net weight


115 Kg135 Kg235 Kg

Volt Rated

400/3/50400/3/50400/3/50

  • Accessories flake/scale ice
    Accessories flake/scale ice »
  • Ice storage bins
    Ice storage bins »

All the information shown in this document (descriptions, technical specifications, pictures, prices etc.) are indicative only, not binding and can be changed without notice. Despite it, this document remains valid.
